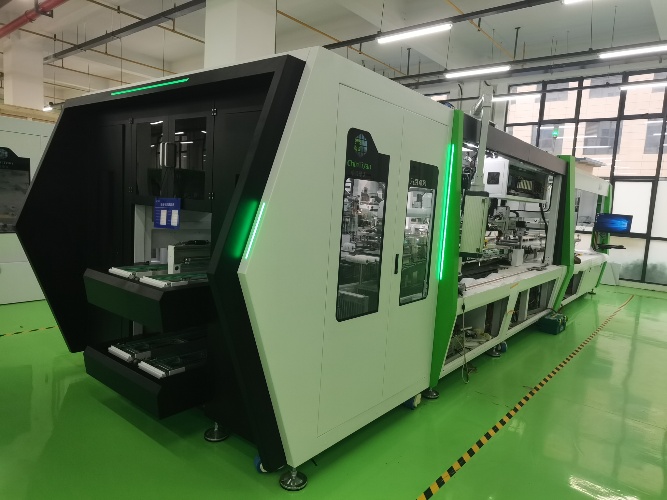

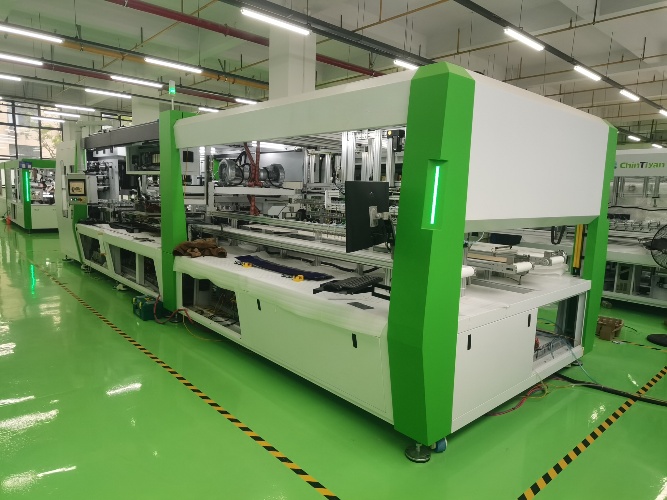

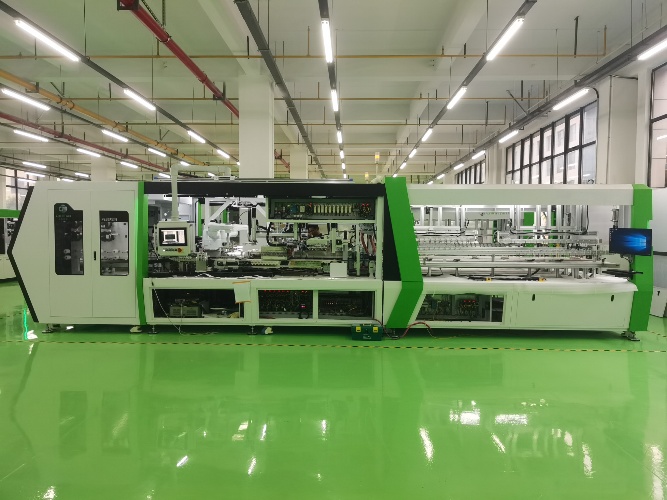

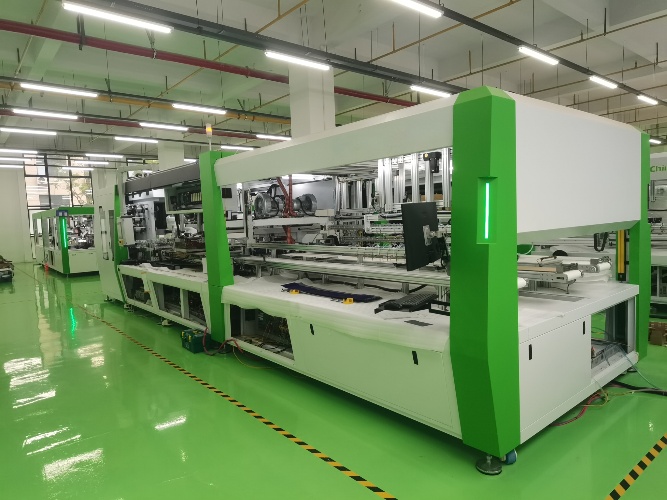

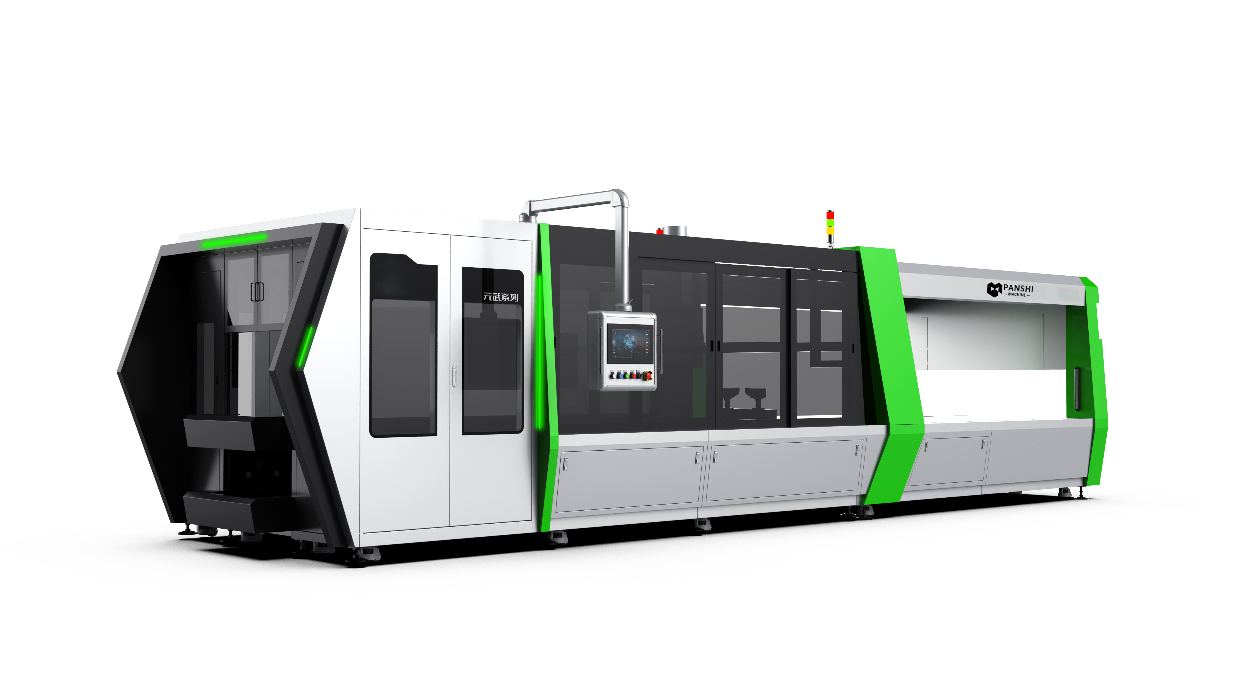

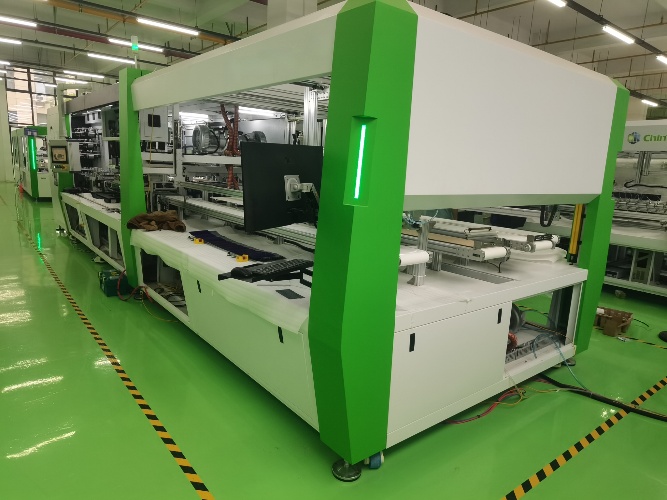

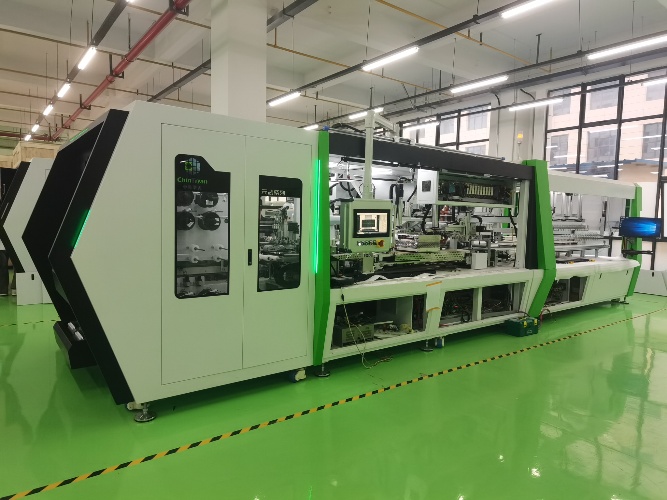

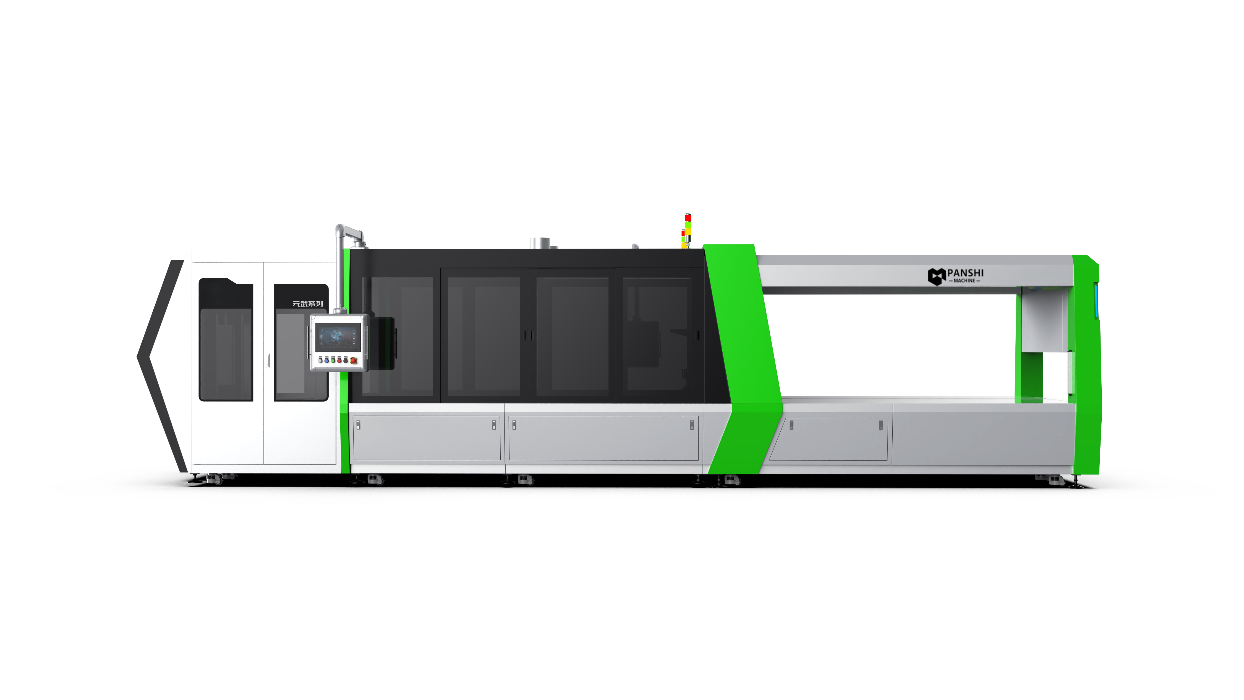

High-Speed BC Stringer Machine CTM-60BC

High-Speed BC Stringer Welder Machine CTM-60BC

High-Speed BC Stringer Machine

Stringer Machine

Model: CTM-60BC

10BB half-cell ≥6000 PCS/H

Uptime ≥98%

Breakage Rate ≤0.25%

Cell Size: 166～230mm BC, 3-20BB, 120～200um

Stringer Machine

Suitable for pv production line in solar panel factories

The CTM-60BC, a high-speed BC welder, is designed for automated production compatible with 166–230 (3BB-25BB) solar cell sizes. It welds 166-230 (half cells, 1/3 cells) BC solar cell strings. Equipped with PLC, servo, linear motors, four-axis industrial robots, and machine vision, it achieves fully automated processing from cell loading to string unloading.

Model	CTM-60BC
Product technical specifications
Uptime	≥95%
CAP	>6000 half cells/h for 166-182BC cells
Breakage Rate	≤0.25%	For Type A cells, thickness ≥120μm, the breakage rate increases for ultra-thin cells.
Inspection	CCD
Overall positioning accuracy	Position Deviation: ≤±0.1mm, Angle Deviation: ≤±0.04°
Fluxing Method	Solder Ribbon Dipping
Welding Method	Infrared Welding	Blue film facing downwards, fixture pressing the ribbon.
Temperature Control Precision	±7.5℃	The upper computer can set temperature upper and lower limits, and the device alarms when the temperature exceeds the limit.
Size	166～230mm BC cells, and corresponding half cells, 1/3 cells
Number of Main Busbars	3BB-20BB	Different busbar switching requires fixture replacement.
Cell Thickness	120um～200um

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Supply of Customized Solutions
Based on the customer’s factory, we provide tailored production line solutions. While meeting production capacity requirements, we reasonably configure production equipment, balancing reliability and cost-effectiveness.

Supply of Reliable Production Equipment
We have independently developed twelve core equipment models. To date, we have delivered 19 sets of 100MW photovoltaic module production line equipment and various self-developed stand-alone equipment to over 20 countries and regions worldwide.

Supply with Delivery Commitment
In alignment with the customer’s project schedule, we complete order delivery before the mutually agreed delivery date.

Turnkey Solutions Supply
Customized solutions, equipment selection, order delivery, equipment installation, training, and satisfactory after-sales support.
